Family Pocket - Electronic enclosures - Plastic

WITEK

Description

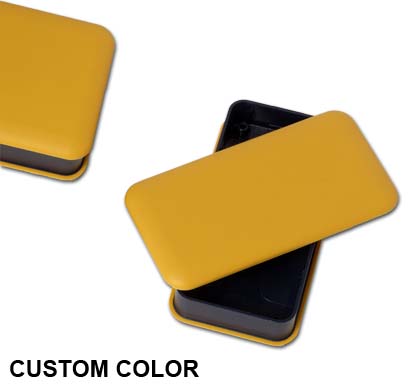

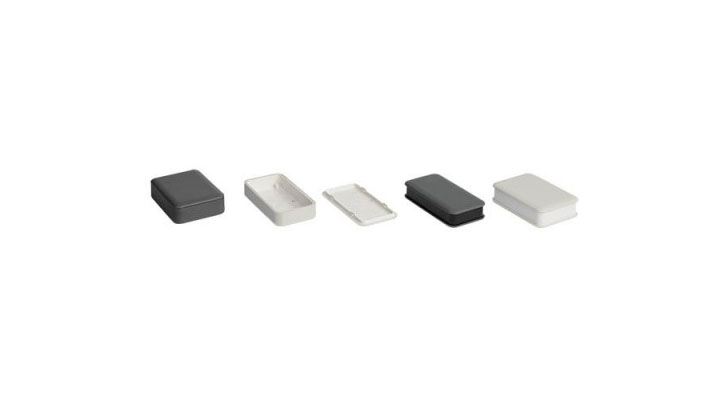

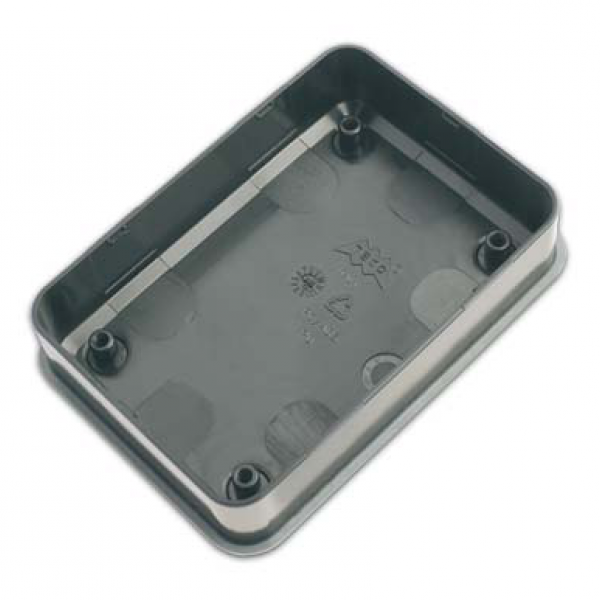

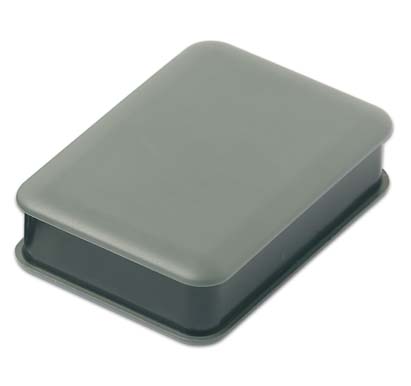

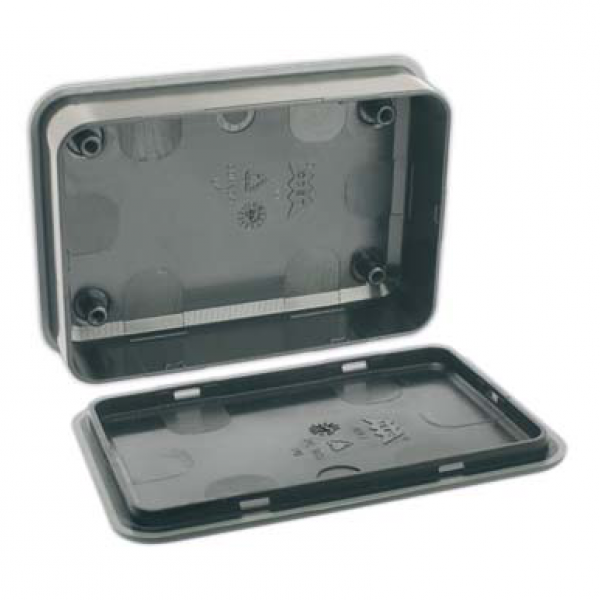

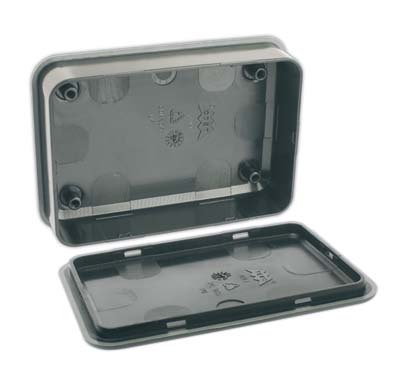

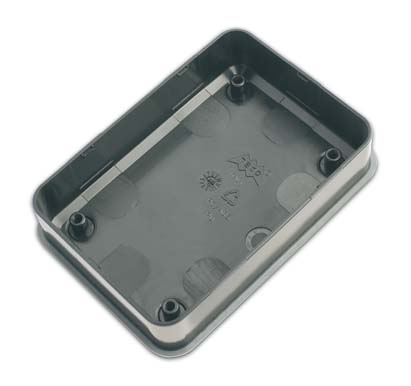

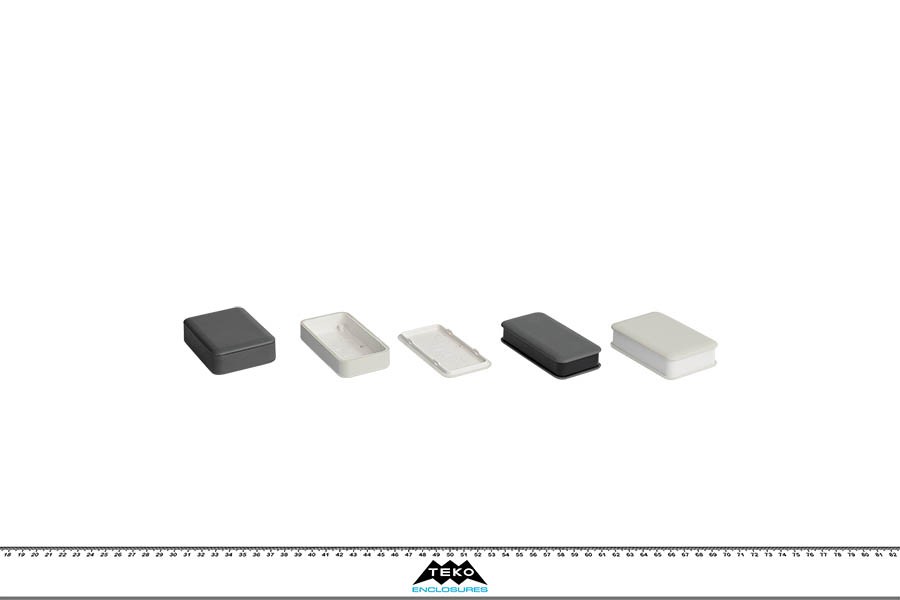

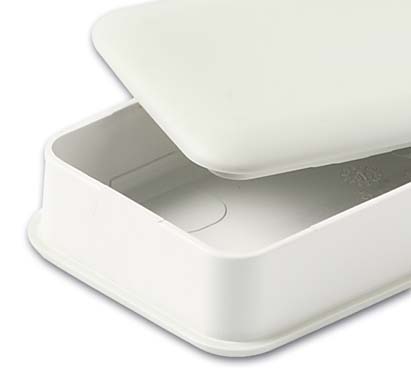

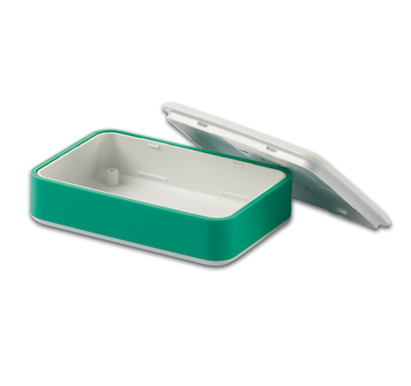

Series of enclosures moulded in two-materials (ABS/PC and TPU) with snap-on closing. Base with integral mounting studs for PCB. Two combinations of colours available: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.

Details

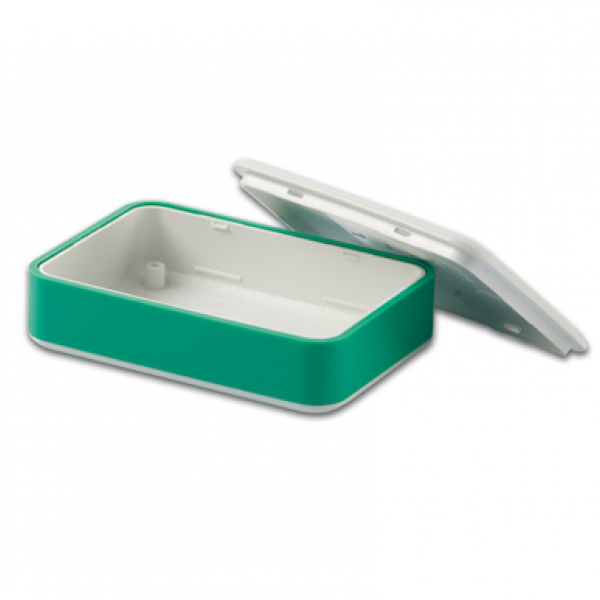

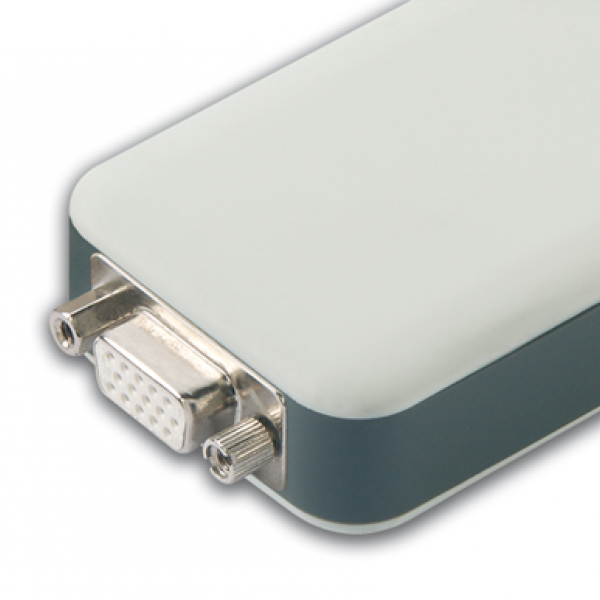

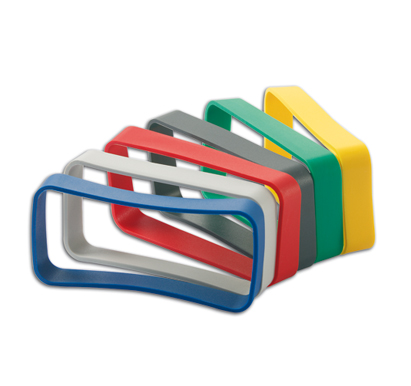

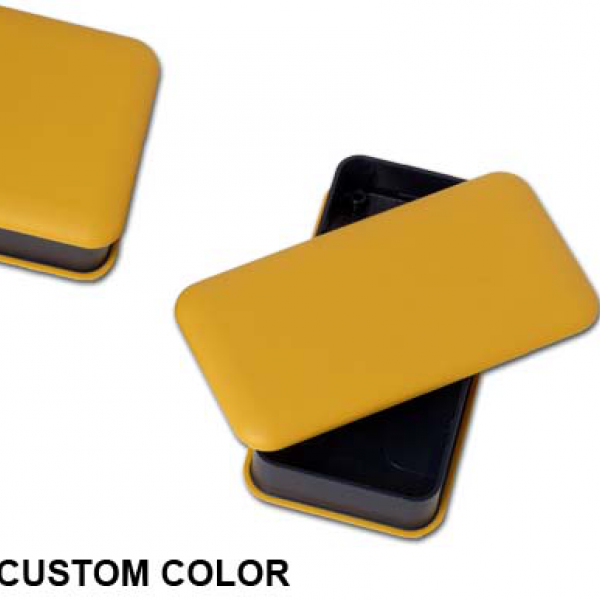

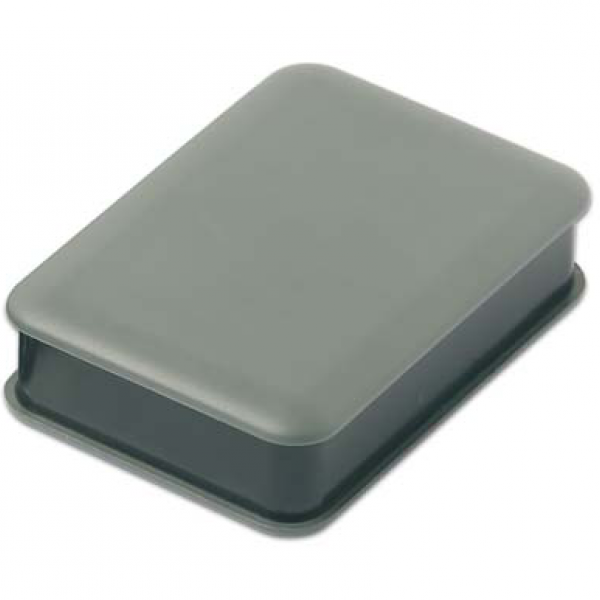

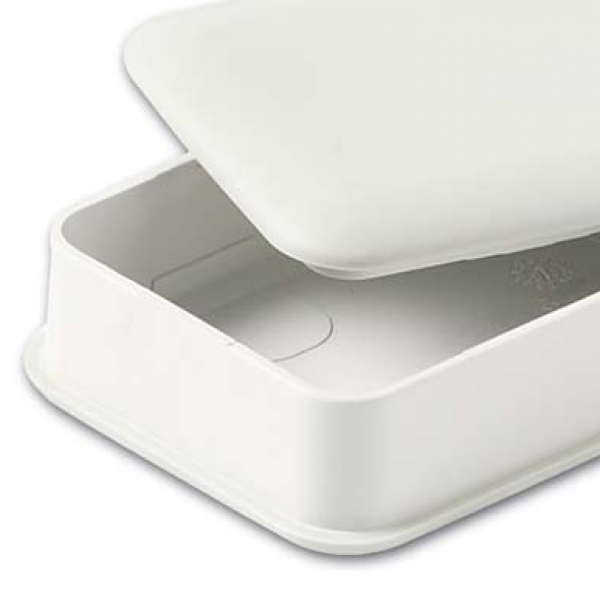

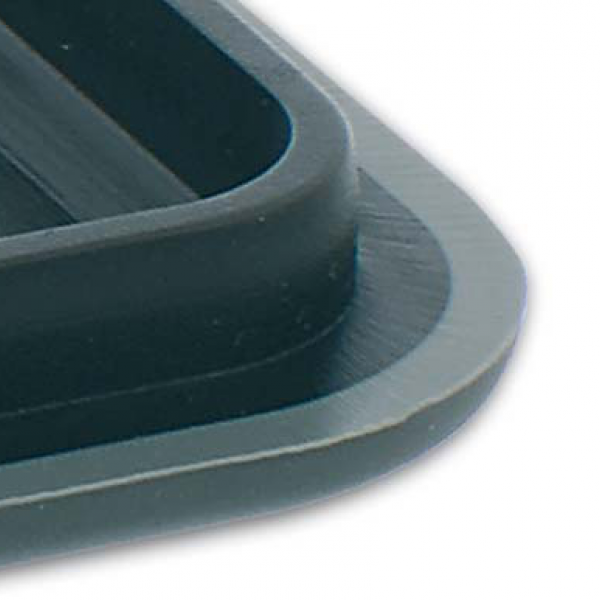

WITEK - dettaglio 1

WITEK - dettaglio 2

WITEK - dettaglio 3

WITEK - dettaglio 4

WITEK - dettaglio 5

WITEK - dettaglio 6

WITEK - dettaglio 7

WITEK - dettaglio 8

WITEK - dettaglio 9

WITEK - dettaglio 10

WITEK - dettaglio 11

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

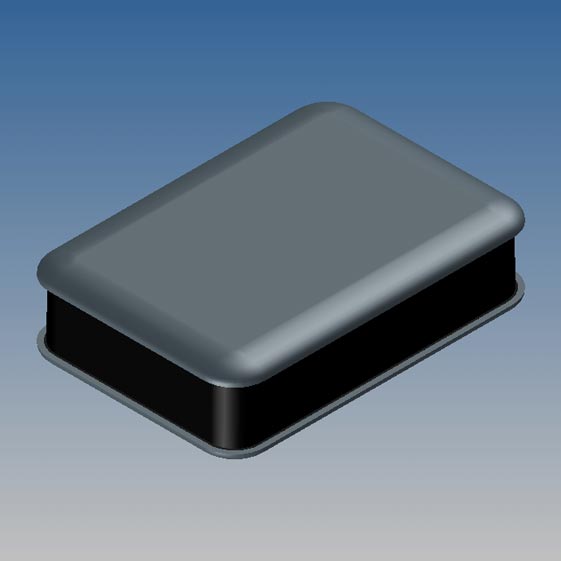

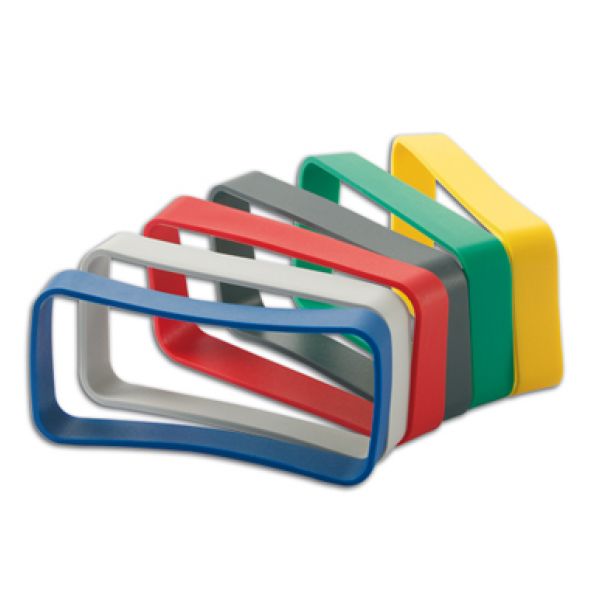

	WK-2.29	80	56	22	9004 7012	P2H-AT - 8020	73	48	-	-	RWK-2		View Color (Ral): 9004 7012 Material: P2H-AT - 8020 MAX PCB L (mm): 73 MAX PCB W (mm): 48 Screws: - Battery: - Accessories: RWK-2 Drawings: PDF DWG

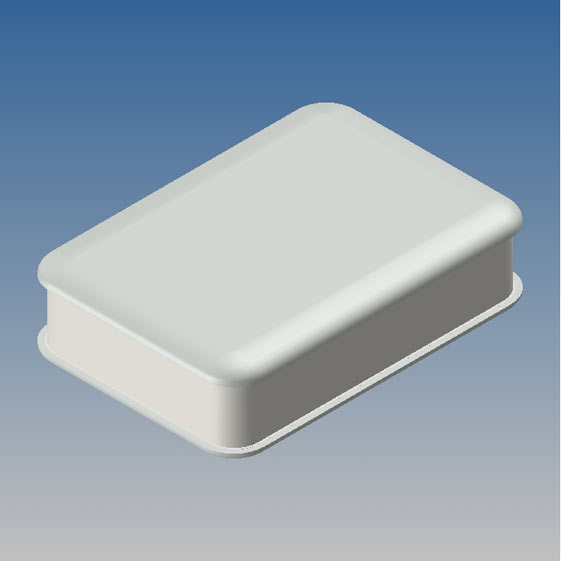

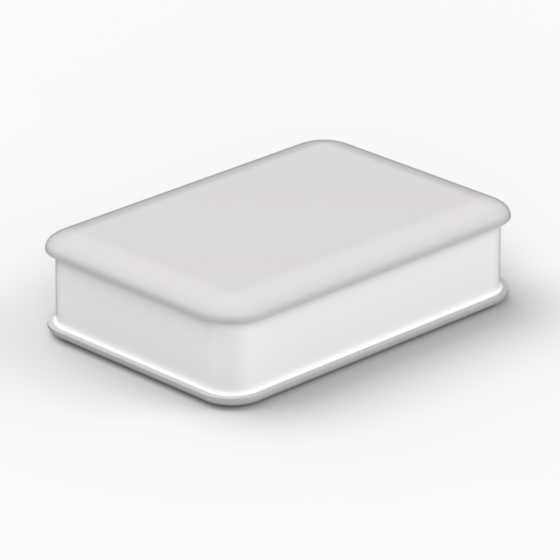

	WK-2.30	80	56	22	9002 9018	P2H-AT - 8020	73	48	-	-	RWK-2		View Color (Ral): 9002 9018 Material: P2H-AT - 8020 MAX PCB L (mm): 73 MAX PCB W (mm): 48 Screws: - Battery: - Accessories: RWK-2 Drawings: PDF DWG

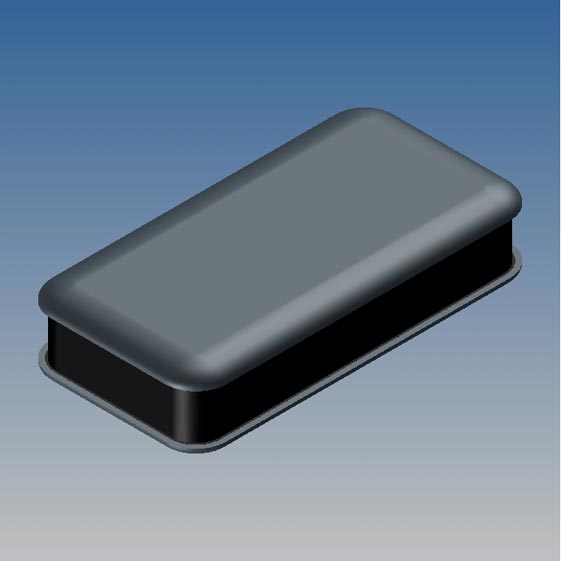

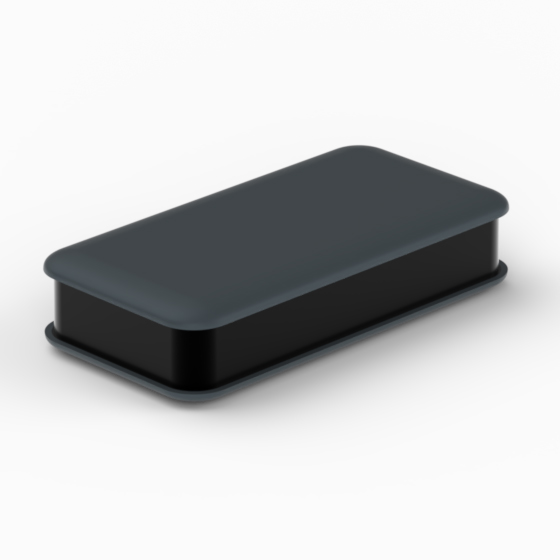

	WK-3.29	90	46	20	9004 7012	P2H-AT - 8020	82	38	-	-	RWK-3		View Color (Ral): 9004 7012 Material: P2H-AT - 8020 MAX PCB L (mm): 82 MAX PCB W (mm): 38 Screws: - Battery: - Accessories: RWK-3 Drawings: PDF DWG

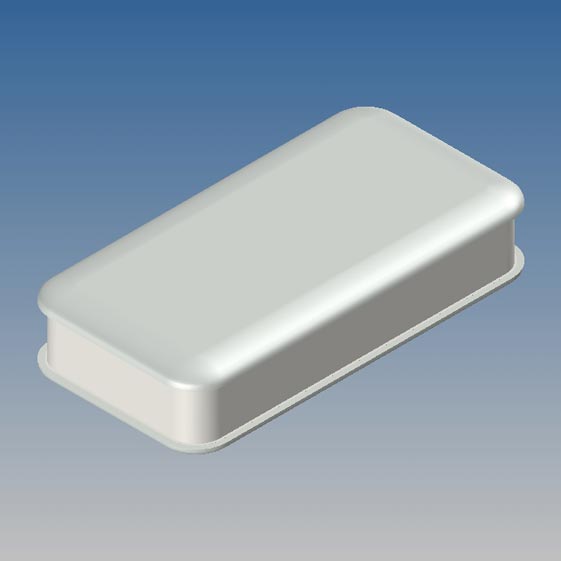

	WK-3.30	90	46	20	9002 9018	P2H-AT - 8020	82	38	-	-	RWK-3		View Color (Ral): 9002 9018 Material: P2H-AT - 8020 MAX PCB L (mm): 82 MAX PCB W (mm): 38 Screws: - Battery: - Accessories: RWK-3 Drawings: PDF DWG
