Description

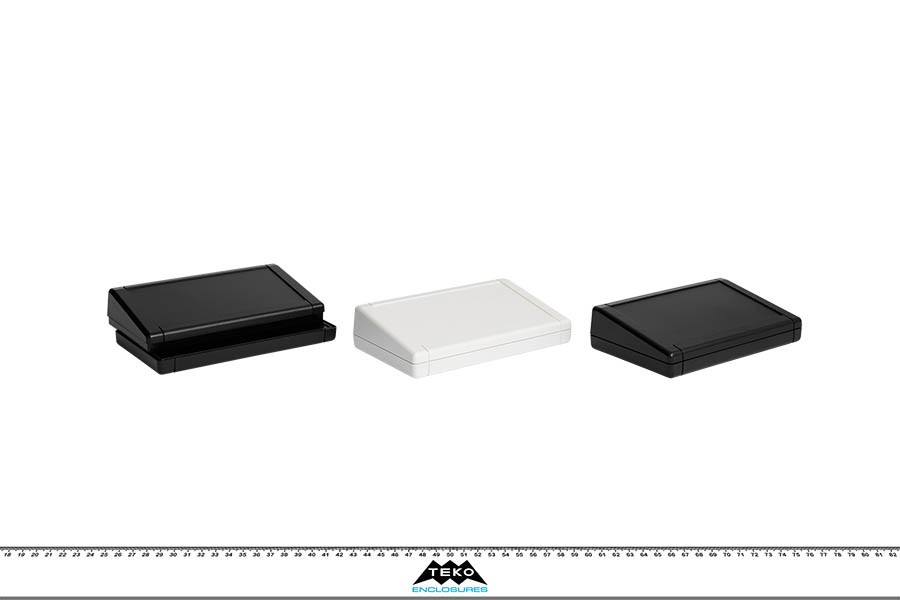

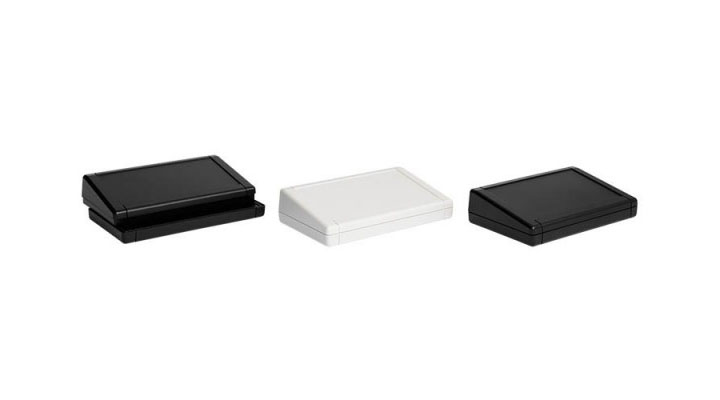

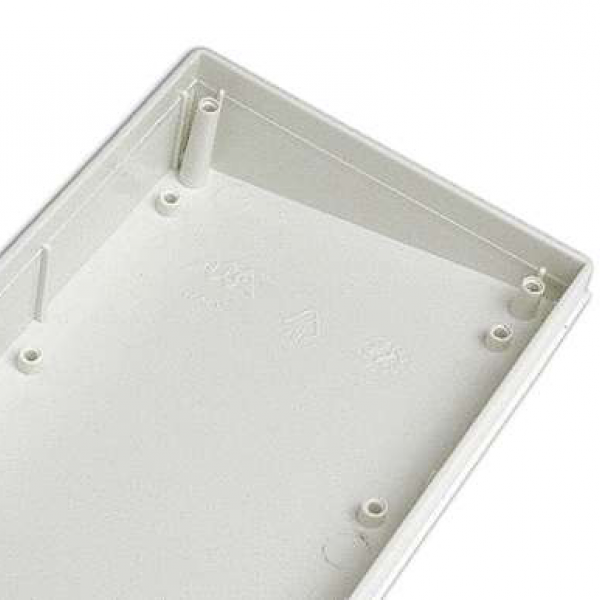

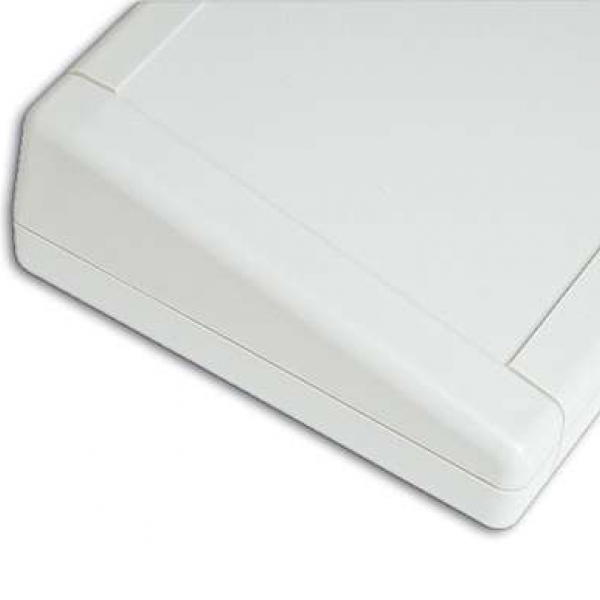

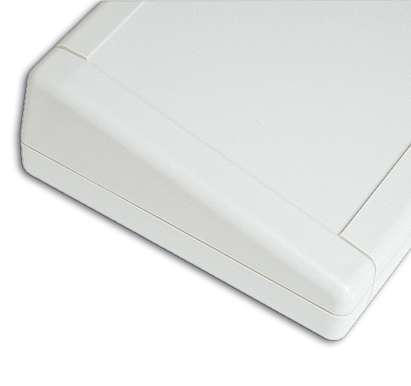

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

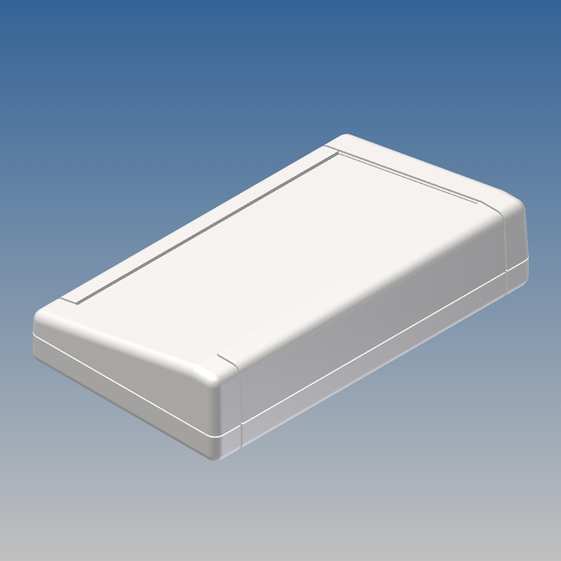

TB-1SP.7 | 160 | 94 | 36,5 |
9002 |
FORMACROM 9249FC | 149 | 80 | 4 | - |
MT1 |
PDF DWG |
View
|
|

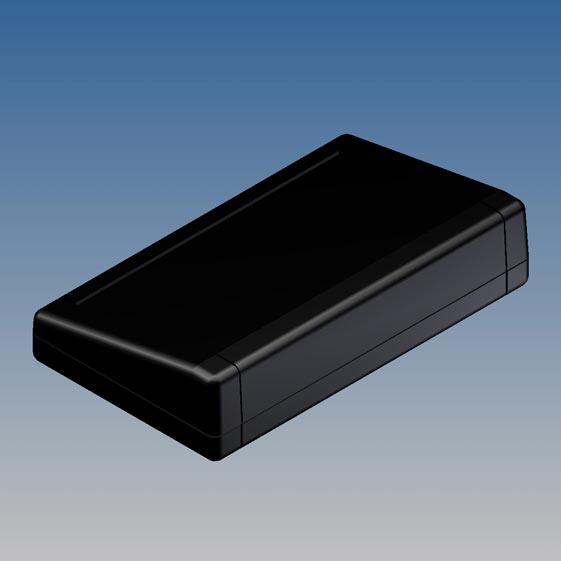

TB-1SP.9 | 160 | 94 | 36,5 |
9004 |
TERLURAN GP-35 | 149 | 80 | 4 | - |
MT1 |
PDF DWG |
View
|
13 product families, 155 series. You can't find what you're looking for? Contact us
