TB-S

Family Handheld - Electronic enclosures - Plastic

TB-S

Description

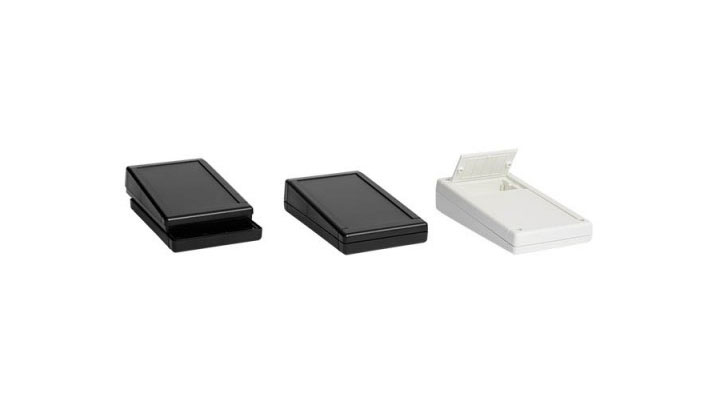

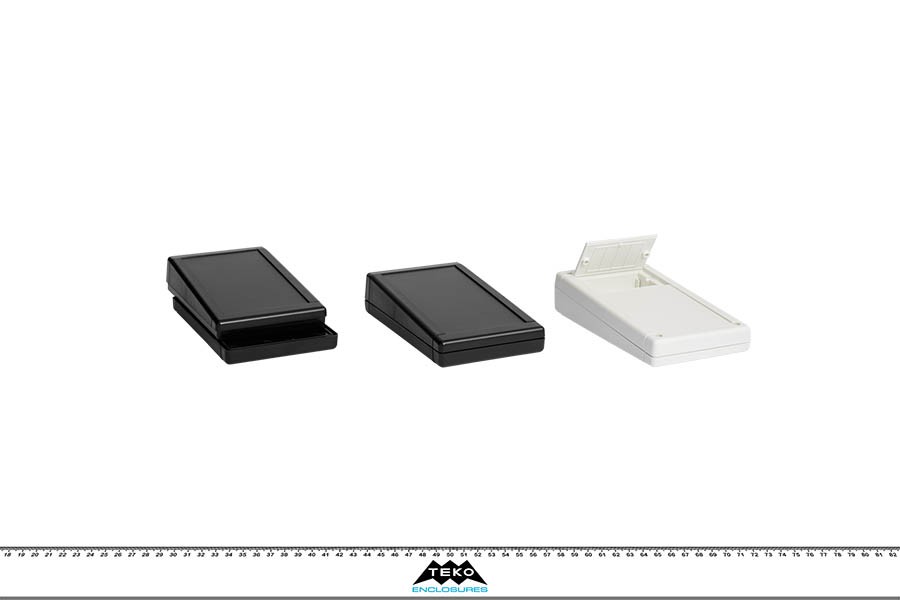

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

Details

TB-S - dettaglio 1

TB-S - dettaglio 2

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

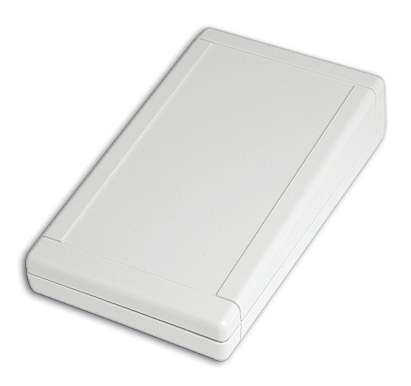

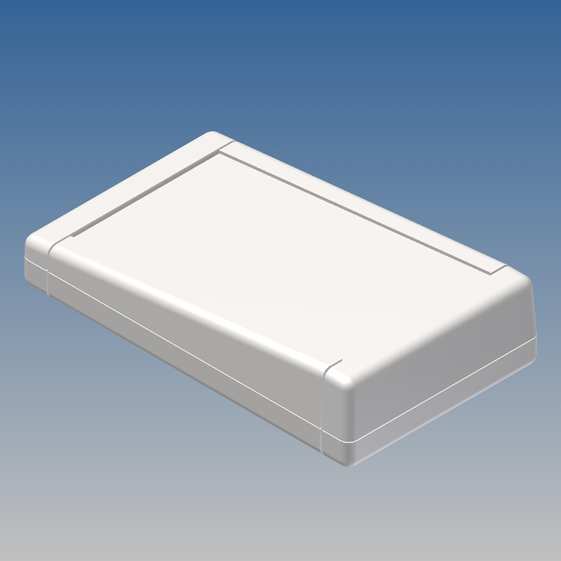

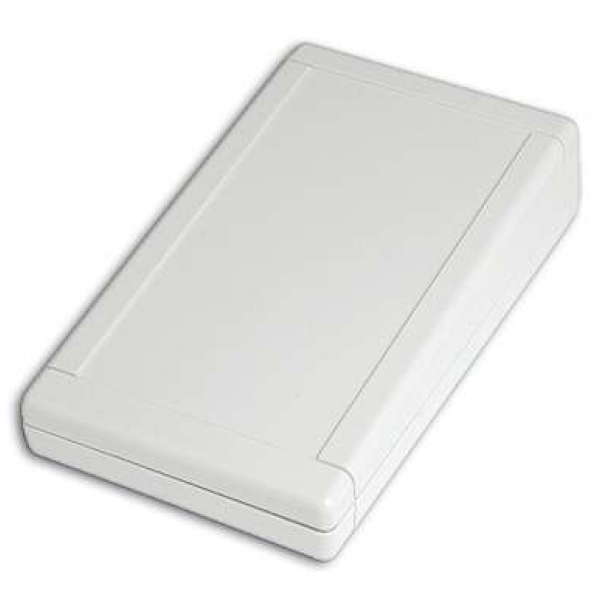

	TB-1S.7	160	94	36,5	9002	FORMACROM 9249FC	149	80	4	-	M M58 M59 MT1		View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 149 MAX PCB W (mm): 80 Screws: 4 Battery: - Accessories: M M58 M59 MT1 Drawings: PDF DWG

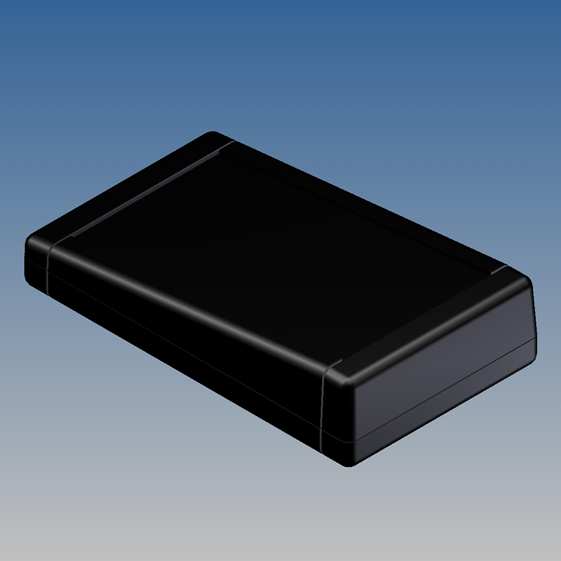

	TB-1S.9	160	94	36,5	9004	TERLURAN GP-35	149	80	4	-	M M58 M59 MT1		View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 149 MAX PCB W (mm): 80 Screws: 4 Battery: - Accessories: M M58 M59 MT1 Drawings: PDF DWG

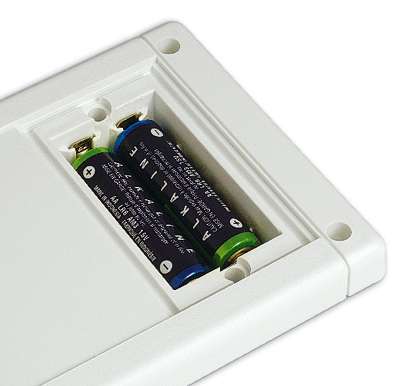

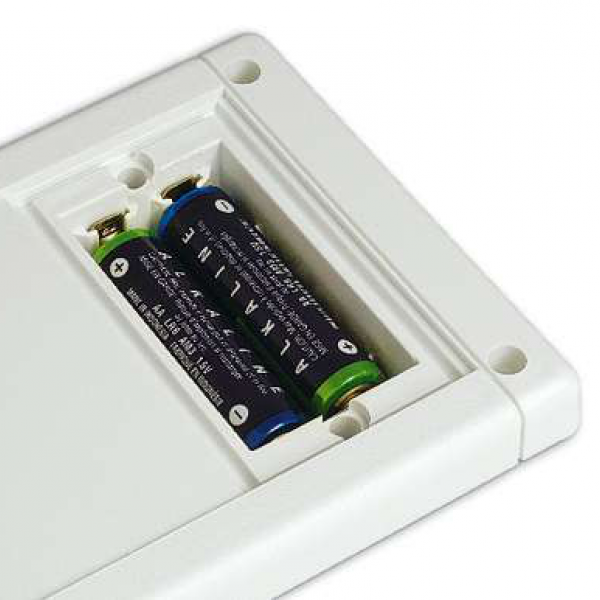

	TB-1SB.7	160	94	36,5	9002	FORMACROM 9249FC	98	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1		View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 98 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 Drawings: PDF DWG
	TB-1SB.9	160	94	36,5	9004	TERLURAN GP-35	98	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1		View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 98 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 Drawings: PDF DWG
