Description

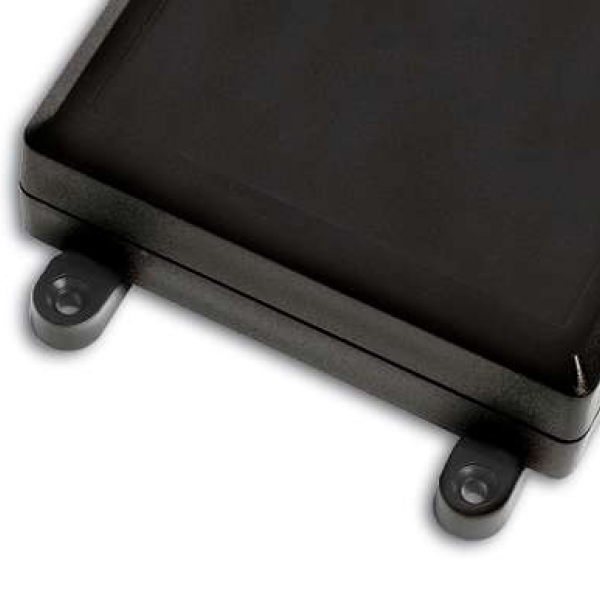

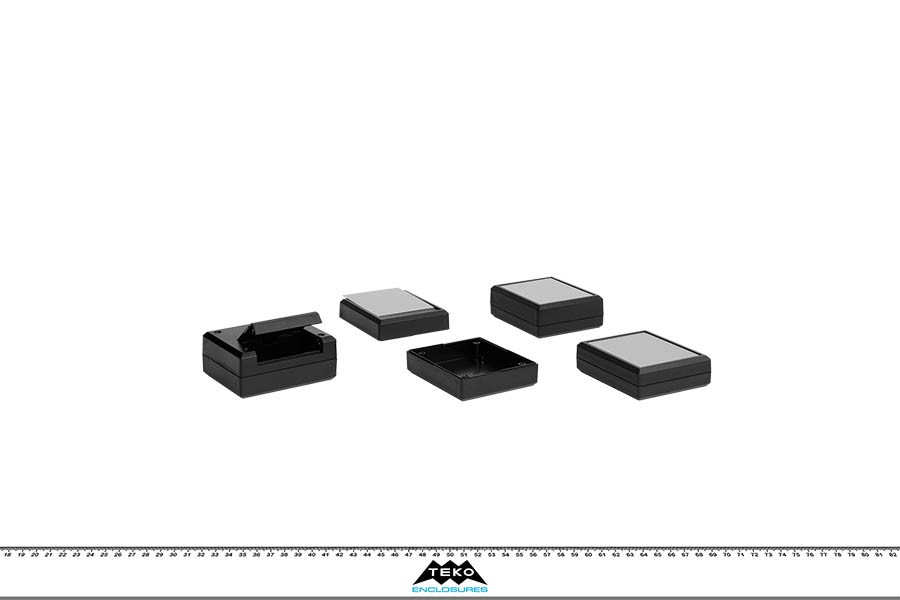

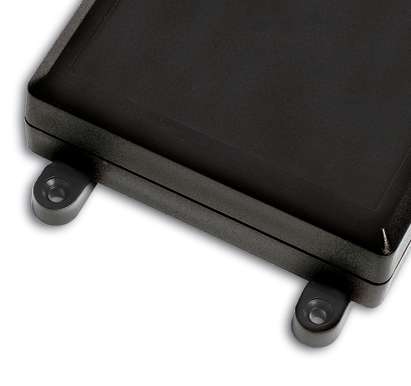

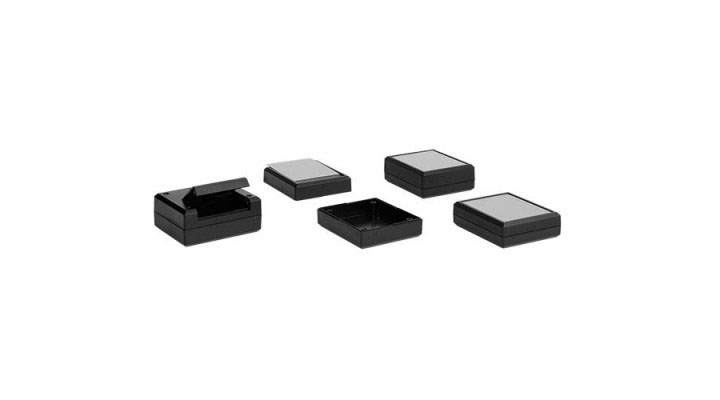

ABS enclosures with a recessed area to allow a 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

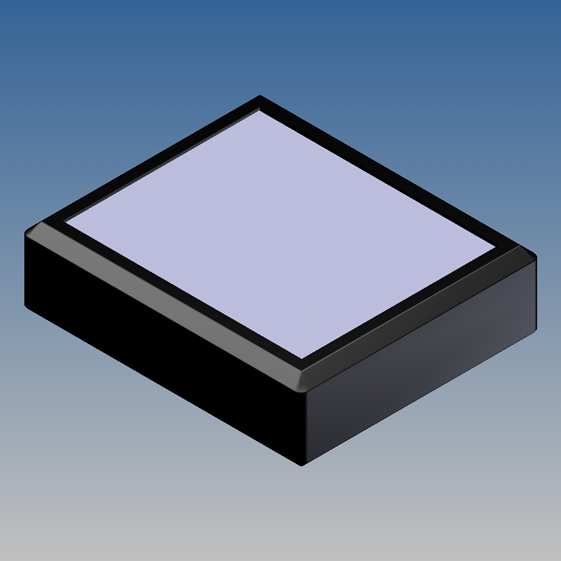

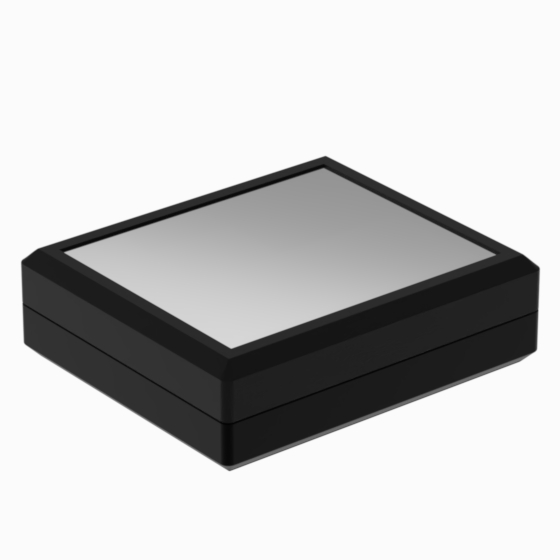

1111.9 | 85 | 72,5 | 25 |
9004 |
P2H-AT | 76 | 62,5 | 4 | - |
MT1 |
PDF DWG |
|
|

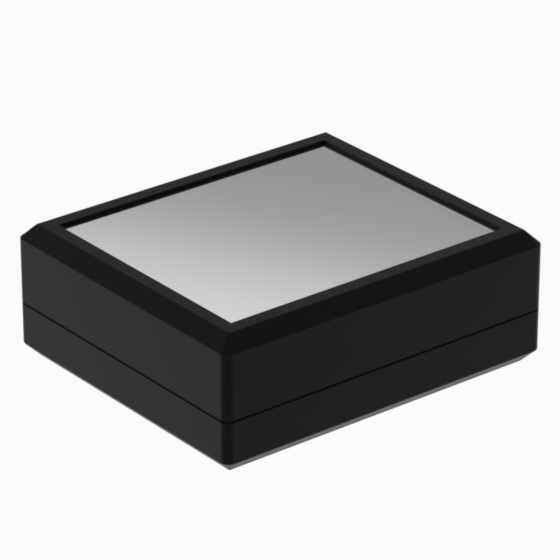

1122.9 | 85 | 72,5 | 30,5 |
9004 |
P2H-AT | 76 | 62,5 | 4 | - |
MT1 |
PDF DWG |
|
|

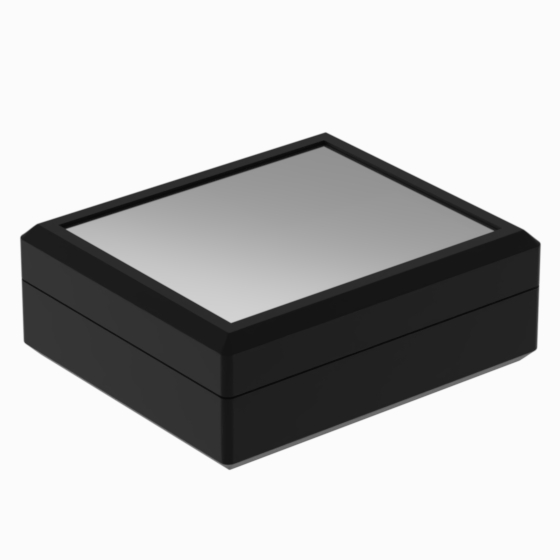

2211.9 | 85 | 72,5 | 30,5 |
9004 |
P2H-AT | 76 | 62,5 | 4 | - |
MT1 |
PDF DWG |
|
|

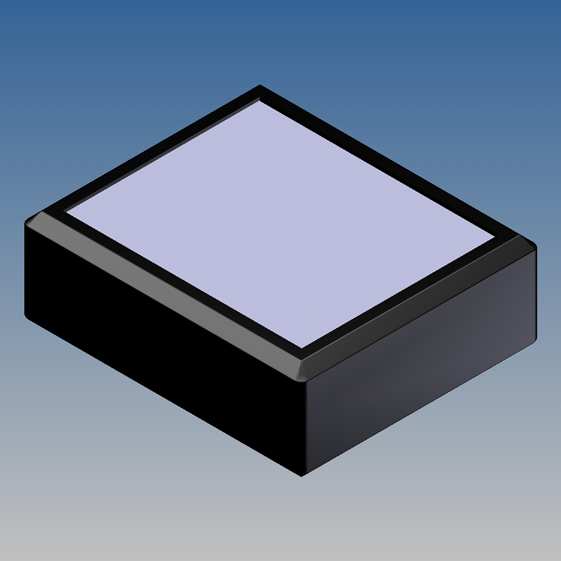

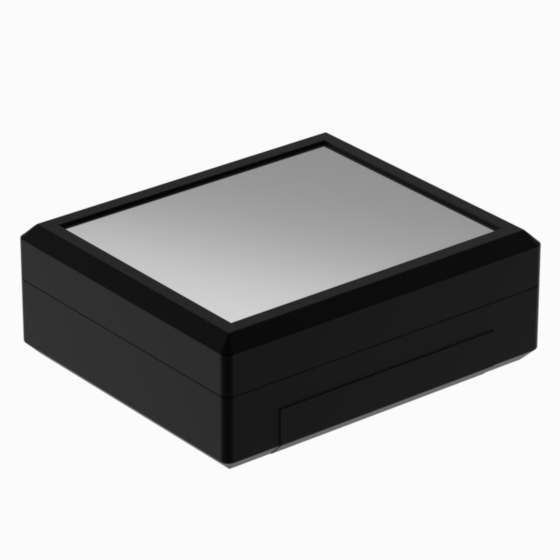

2211-B.9 | 85 | 72,5 | 30,5 |
9004 |
P2H-AT | 76 | 30 | 4 | - |
MT1 |
PDF DWG |
|
|
2222.9 | 85 | 72,5 | 36 |
9004 |
P2H-AT | 76 | 62,5 | 4 | - |
MT1 |
PDF DWG |
|
|

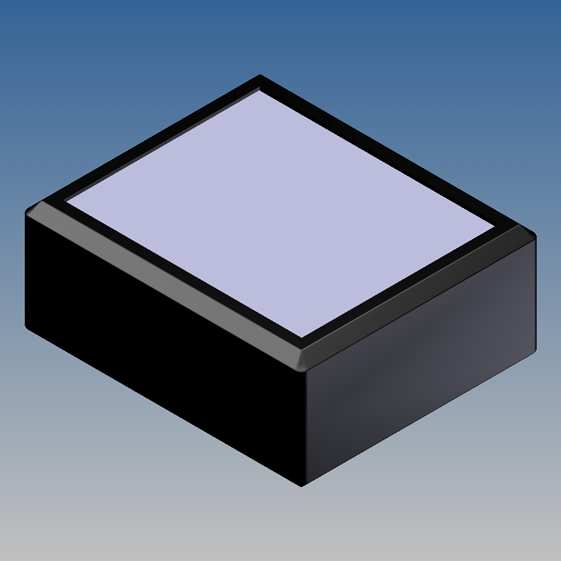

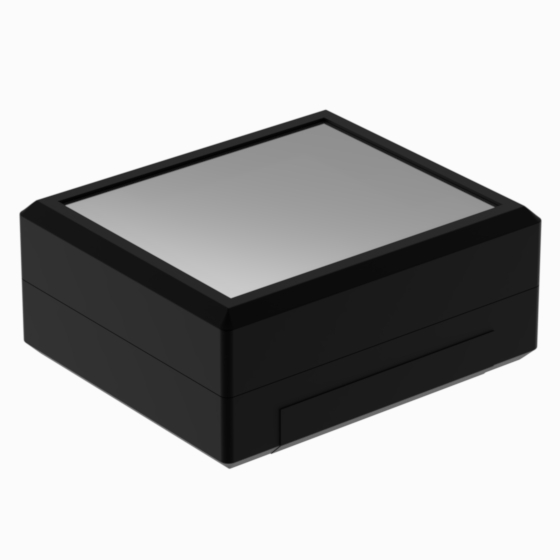

2222-B.9 | 85 | 72,5 | 36 |
9004 |
P2H-AT | 76 | 30 | 4 | - |
MT1 |
PDF DWG |
13 product families, 155 series. You can't find what you're looking for? Contact us
