Description

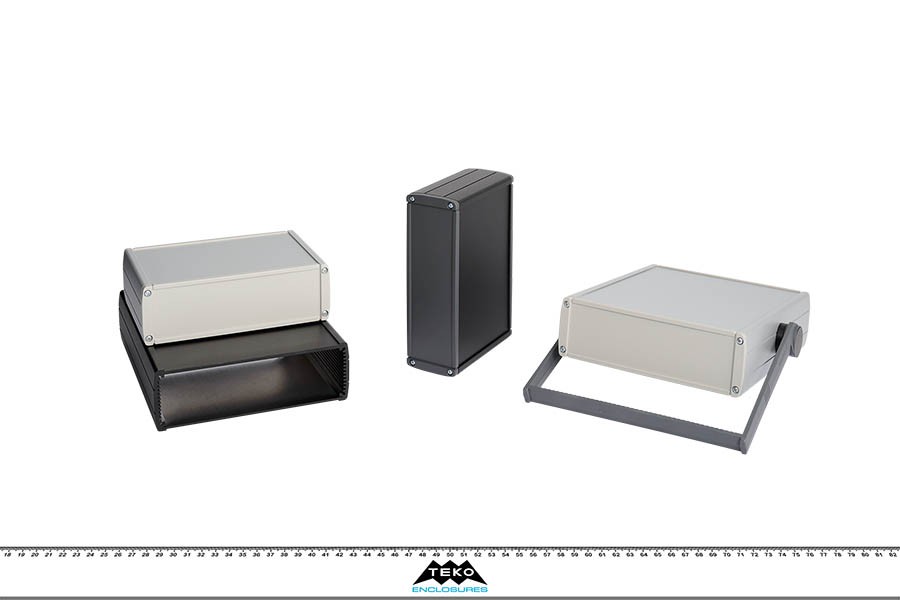

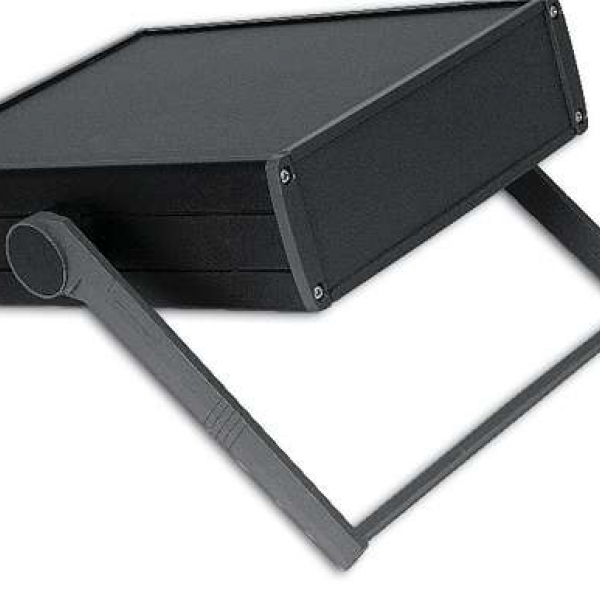

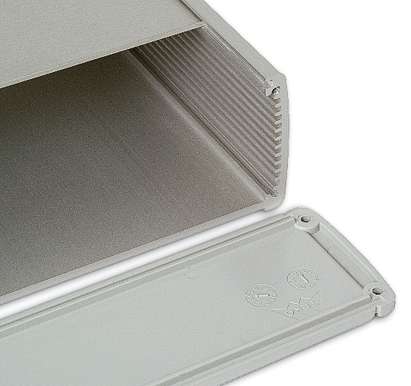

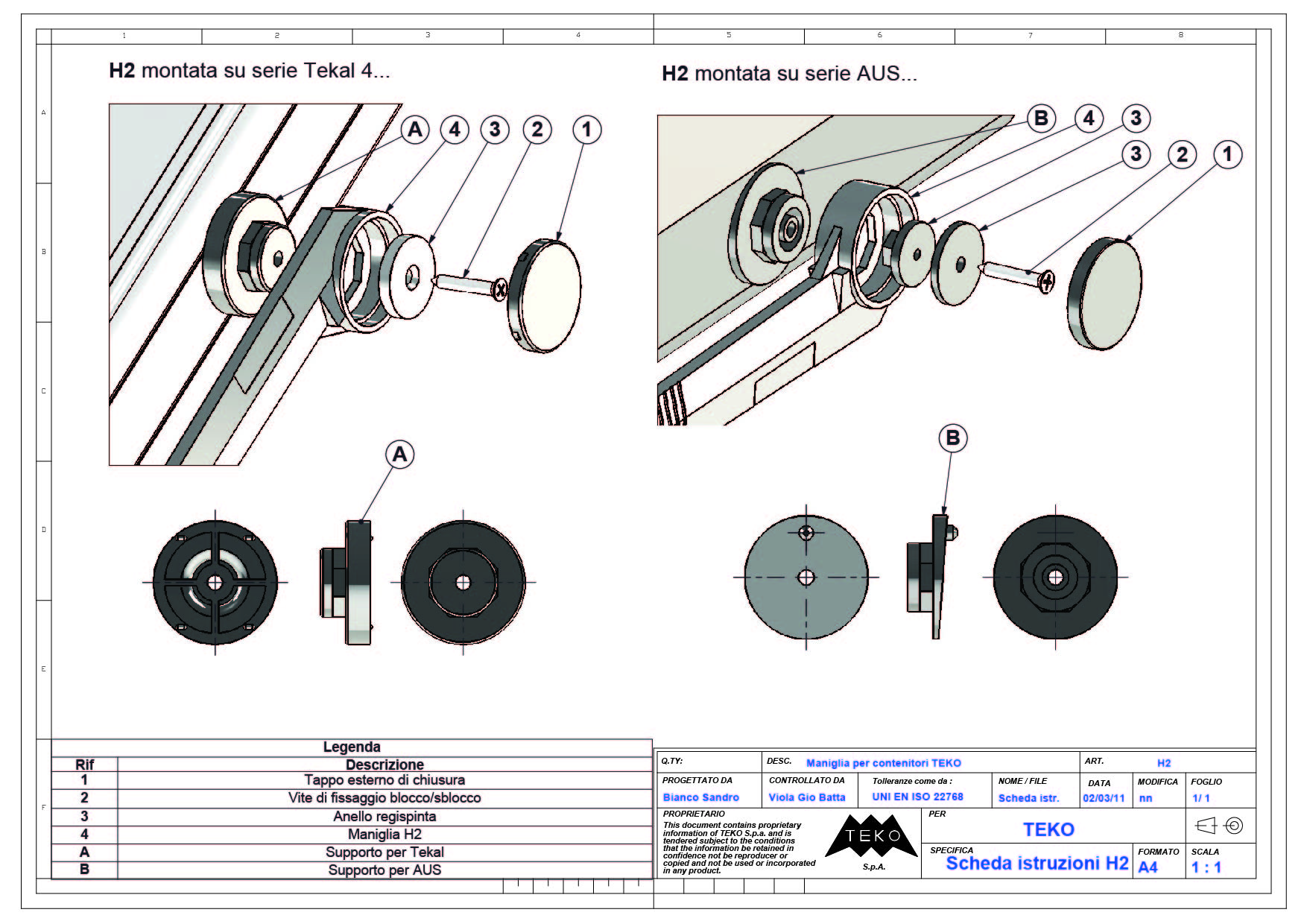

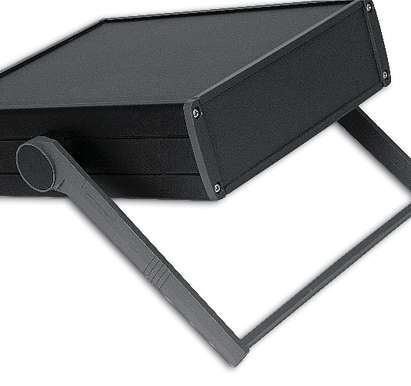

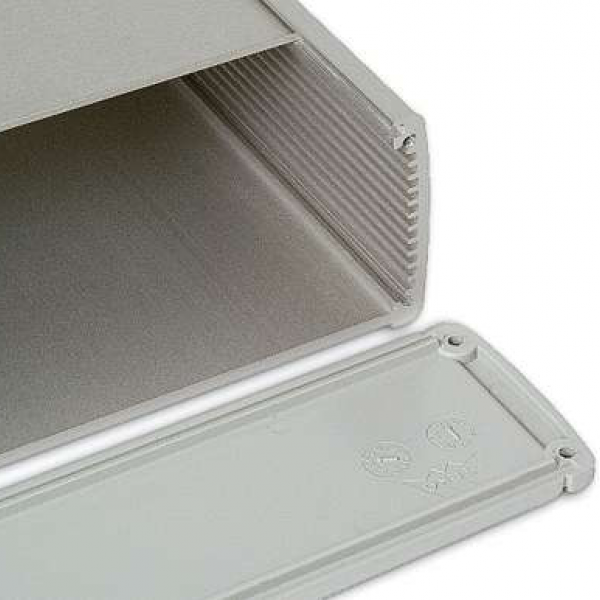

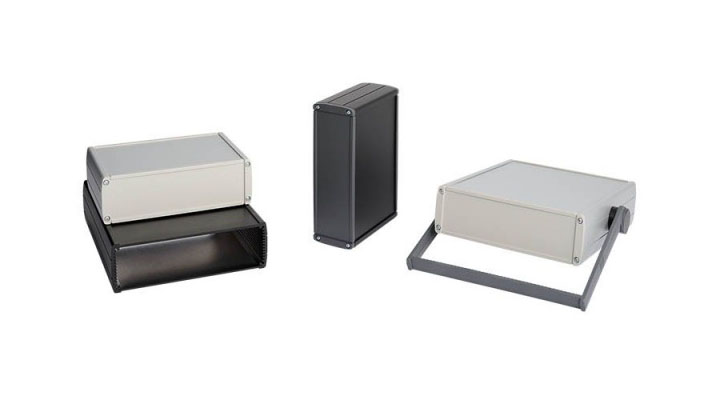

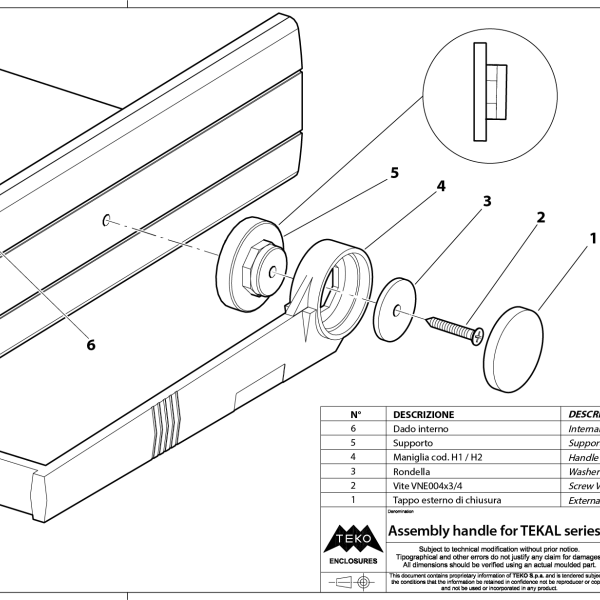

Extruded aluminium cases with high quality painted finishing and sliding cover aluminium panel. Two ABS front panels, internal slots for PCB’s. The models with “-H” have a plastic handle bar with eight position locking. Two different lengths. Closing by eight screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

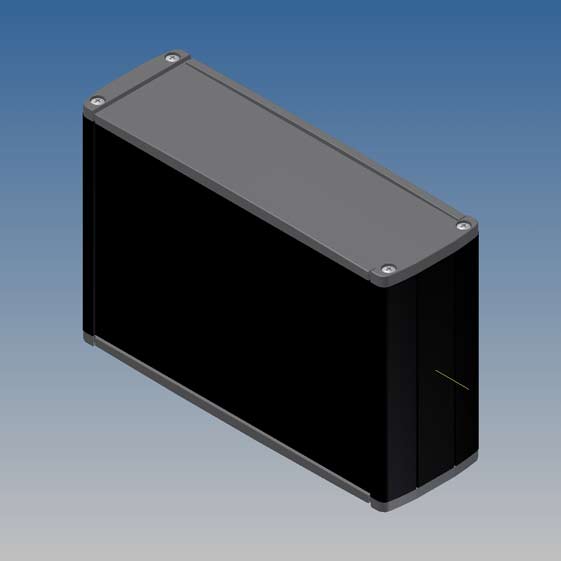

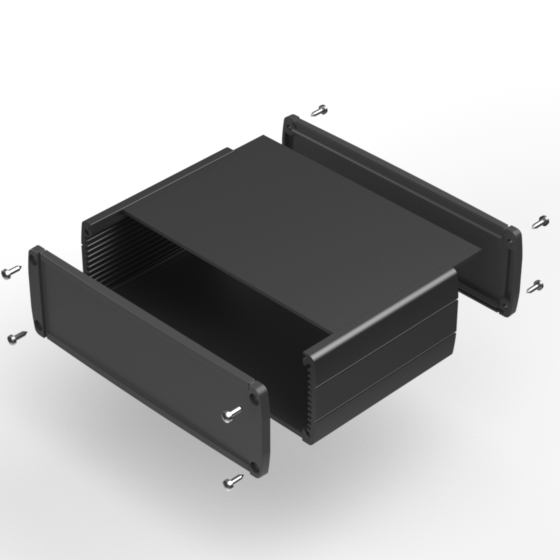

TEKAL-41.29 | 110 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
|
|

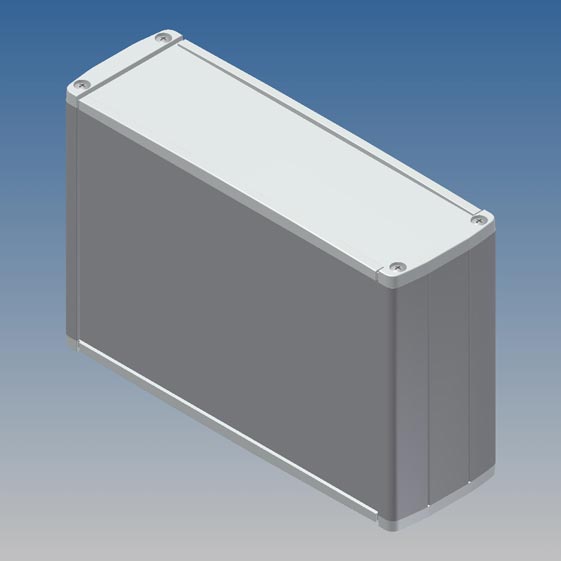

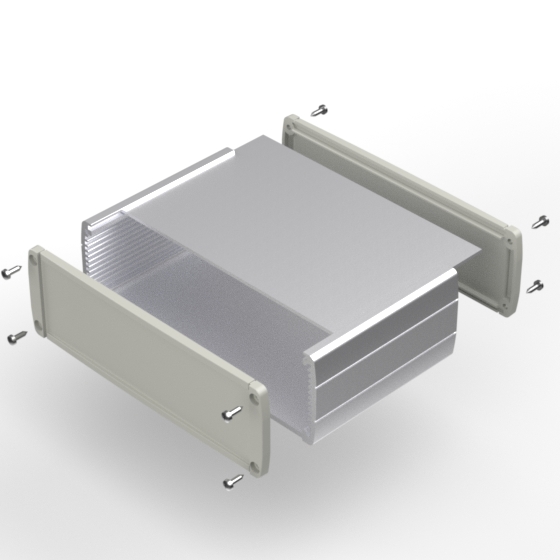

TEKAL-41.31 | 110 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
|
|

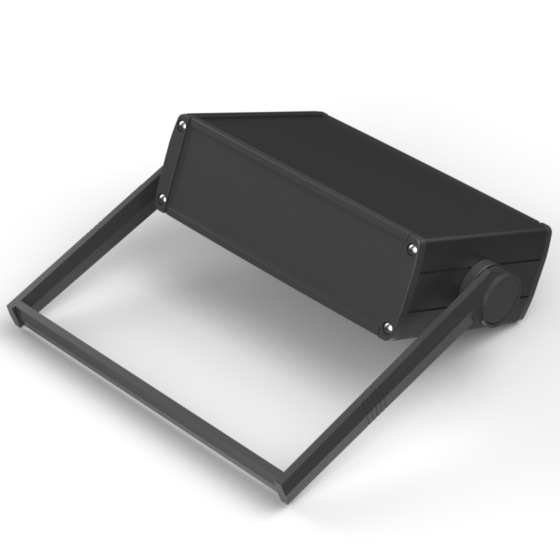

TEKAL-41/H.29 | 110 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
ALP-4 |
PDF DWG |
|
|

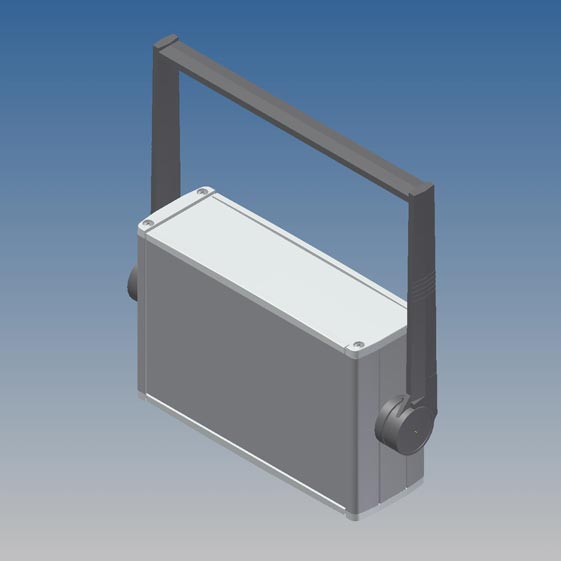

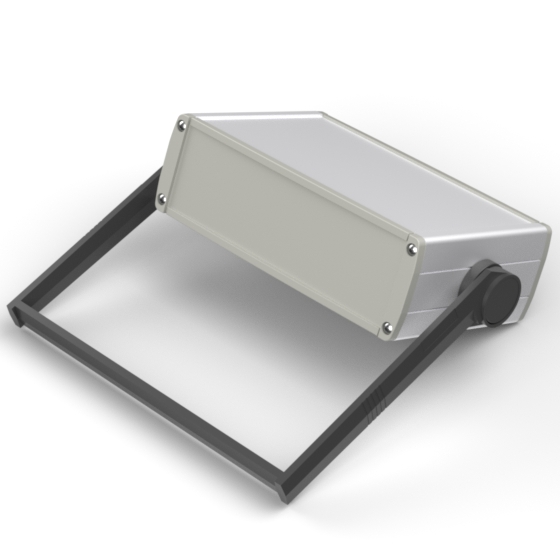

TEKAL-41/H.31 | 110 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
ALP-4 |
PDF DWG |
|
|

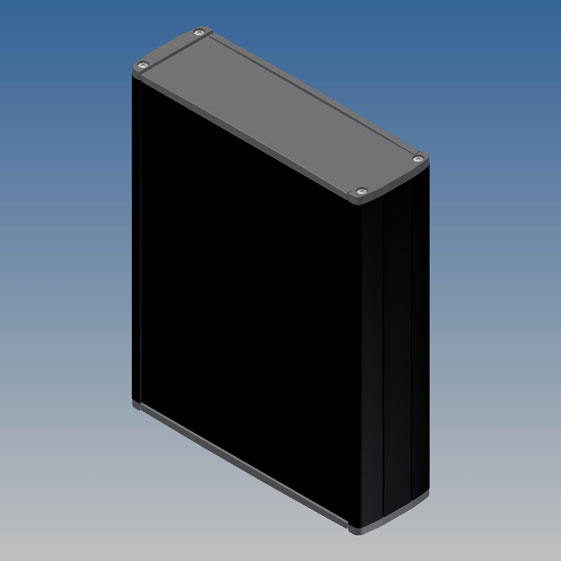

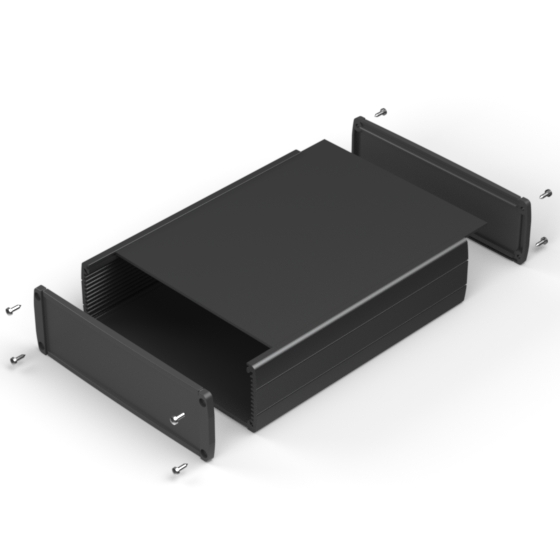

TEKAL-42.29 | 210 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
|
|

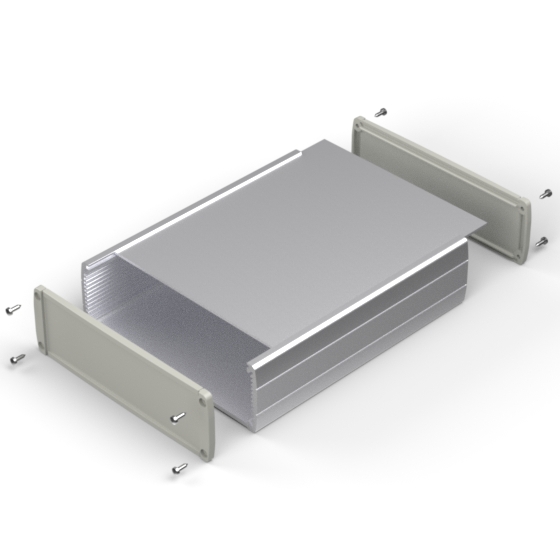

TEKAL-42.31 | 210 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
|
|

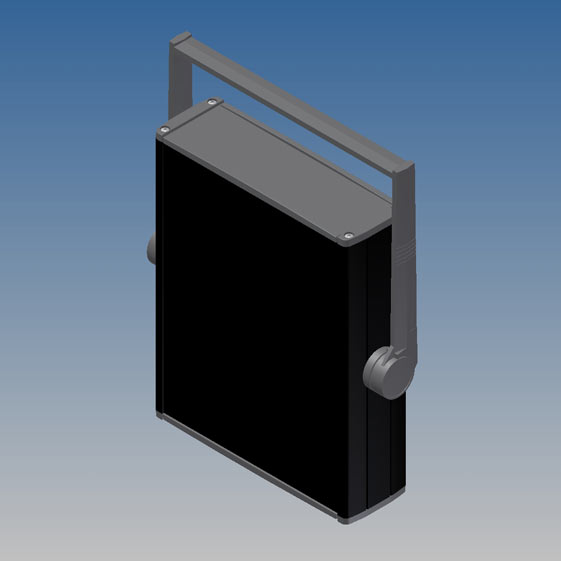

TEKAL-42/H.29 | 210 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
ALP-4 |
PDF DWG |
|
|

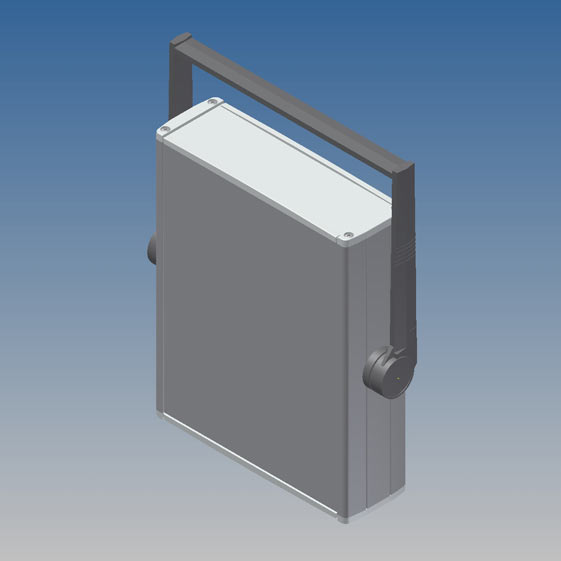

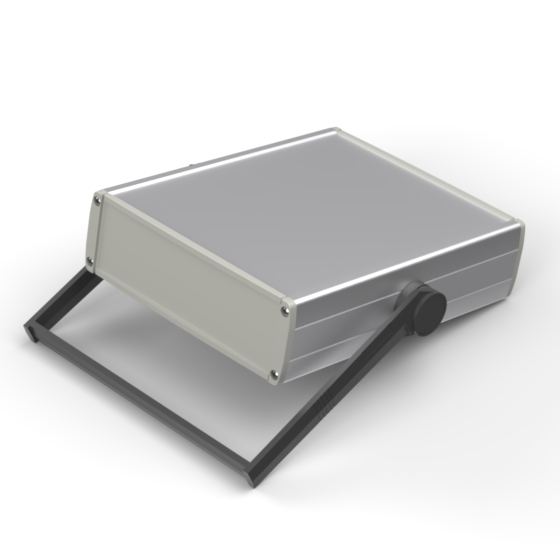

TEKAL-42/H.31 | 210 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
ALP-4 |
PDF DWG |
