CONCEPT

TEKO know-how comes into play by presenting on the market the new case “TEK-BEAGLE” specific for housing the “Beagleboard XM (Rev. C) card. Following the success of TEK-BERRY - our solution to housing Raspberry PI - we are now pleased to propose the new TEK-BEAGLE.

DESIGN

The new case “TEK-BEAGLE” features a fresh and innovative design that, complemented by technical solutions aimed at enhancing the performances of embedded Mini-PC, identifies the well-know TEKO-Style.

TEK-BEAGLE  Specifiche tecniche

Flame retardant material Bayblend  (ABS  + PC) – Flame class VO -  to ensure an excellent mechanical strength even when exposed to high temperatures.

Fast and secure closing by 4 screws on the bottom.

Internal fixing studs for an easy  and intuitive fixing of the “Beagleboard-XM”.

Aeration slots on all the perimeter of the base for a proper airflow in order to not overheat the components.
Sides of the case protrude to protect the connectors.

Supply includes 4 transparent non-slip feet that cover the screws.

Available standard colors: ice white.40 – black .9 – transparent .0
Production in custom colors requires a MOQ = 500pcs.

No more cables, and connectors to Your desk by using the new accessory for TEK-BERRY developed by TEKO that allows to operate at a tidy workstation! The RPI-VESA adapter perfectly suits to the standard VESA 50, 75 and 100 and ensures compatibility with most of the screens on the market.

Easy to install by means of 4XM4-countersunks screws (not included). The simple fixing  system allows to firmly hold Your Raspberry-PI into our TEK-BERRY case.

Minimal designed and completely transparent, the RPI-VESA Adapter can be perfectly used as wall bracket, ideal for industrial applications (home automation, IT-technology, security systems etc.).

 The benefits of using our RPI-VESA:

• significant reduction of the cables from Your desk
• no danger of liquids or dirt falling on your Raspberry-PI
• high visual impact
• simple and intuitive system for fixing and dismounting with the TEK-BERRY
• suitable for standard VESA50, VESA75 and VESA100

• possibility of mounting on all types of surfaces (wall, desktop, Rack cabinets, etc.)

As we know, the Raspberry Foundation offered the possibility to  maximize the performances of Raspberry-PI Rev. 2 by providing  a 512M-RAM and by overclocking up to 1GhZ without affecting  the warranty: http://www.raspberrypi.org/archives/2008

This inevitably leads to a substantial increase of the temperature of the main components and a consequent reduction in lifetime of the board.To overcame this problem, TEKO has developed a cooling kit which allow to reduce the temperature. The kit consists of three heat sinks to apply directly on the SOC (BMC2835), on the USB/Ethernet (LAN 9512) and on the regulator voltage by means of the 3M thermal adhesive included in the kit.

The tests we did with thermal chamber by playing the QUAKE-3 DEMO , show a strong reduction of the temperature up to 12°C.

Without RPI-COOLKIT		With RPI-COOLKIT

The benefits of using our KIT:

• easy assembling assured by the 3M adhesive tape
• extremely low profile to an easy access to GPIO
• compatible with Raspberry PI Rev-1 and Rev-2
• no noisy funs
• extension of life of your Raspberry PI

• reduction of failure risk

Now fully compatible with Raspberry PI Rev1 and Rev2

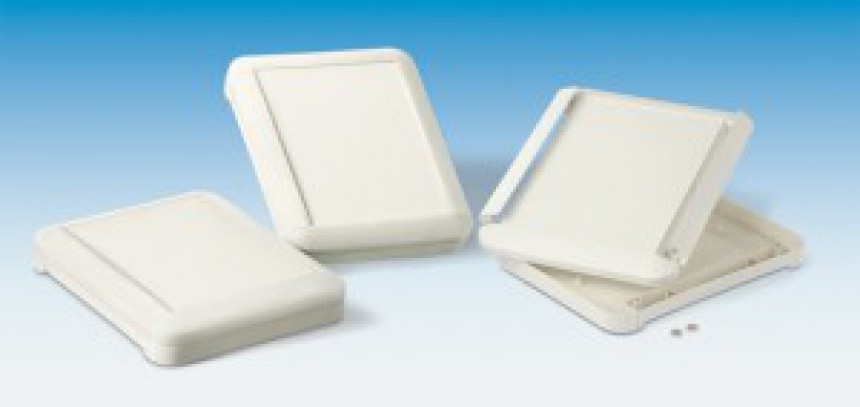

Multifunction flat enclosure, modern designed, ideal for desktop, hand-held and wall mounting applications. Wide recessed area on the top part suitable for touch-screen displays up to 10” (204,5x158,5mm). This model is equipped with IP65 sealing kits for screws and case. Internal battery compartments on both sides to accept 2+2 1,5V mignon cells (AA). Internal bosses on top and bottom for an easy fixing of the PCB. Closing by four M3 screws.

New models from TEKNET series featuring a “T-shape”. ABS hand-held enclosures with elastomer grips (TPU) on the sides. Matt surface finishing. The recessed area on the cover is suitable to accept a keypad membrane. Internal pillars on top and bottom to fix PCB. Closing by four screws.

Extruded aluminium enclosures with high quality black powder coating. Internal slots for easy setup of boards. All models are equipped with IP65 sealing kits. The versions with “E” have front panels equipped with built-in flanges for wall mounting. The “TEKAM 5L” series consists in two half extruded profile, snap-on closing allowing to fix panel mounting components. Closing by eight screws.

Extruded aluminium enclosures with high quality black powder coating. Internal slots for easy setup of boards. All models are equipped with IP65 sealing kits. The versions with “E” have front panels equipped with built-in flanges for wall mounting. Closing by eight screws.

Extruded aluminium case with powder coating and two rubber sealing kits to protect against water and from dust (IP65) available in six different colours. Two metal front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The models with “E” have mounting wall metal panels. The “TEKAM 3L” series consists in two half extruded profile, snap-on closing allowing to fix panel mounting components. Closing by four or eight screws.

The TEK-BERRY case suitable to house the Raspberry PI board, is now available in different colors…

The TEK-BERRY assortment is on stock.  You can buy this case at:

www.reichelt.de
